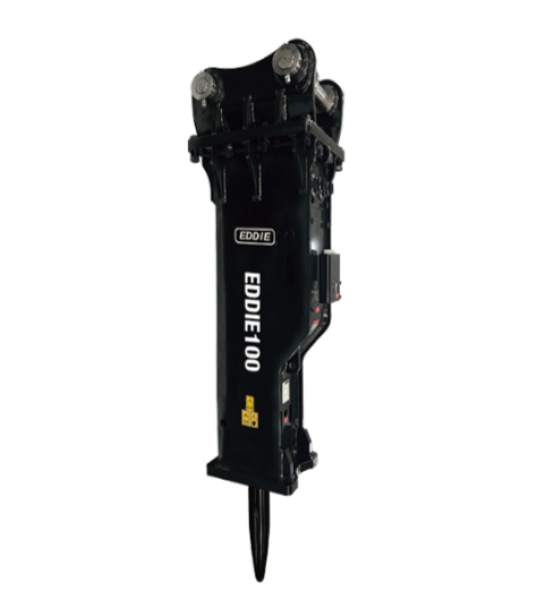

EDDIE100 Silenced Breaker (10 - 15 tons)
General Description
The EDDIE100 is a crusher designed for vehicles weighing between 10 and 15 tons. The EDDIE100 combines all the advantages of top-mounted crushers and features a fully enclosed design. The main drive unit and mounting bracket are fitted with shock-absorbing dampers, resulting in low noise levels and a low failure rate. It is frequently used for demolition work, tunnel construction and the crushing of slag.General technical specification
An Overview of all relevant technical data of the breaker EDDIE100 are listed in the following table.| Specifications | Unit | EDDIE100 EDT800 |
| Operating Pressure | kg/cm² psi bar |
150-170 2130-2414 147-166 |
| Oil Flow | l/min gal/min |
80-110 21-29 |
| Impact Frequency | bpm | 350-700 |
| Tool Diameter | mm inch |
100 3,94 |
| Suitable Carriers | ton | 10-15 |
| Valve Type | Inner Valve Type | |
| Accumulator | No |
The breaker has got a nominal weight of 950 kg and outer dimensions of 187*64*74cm.
