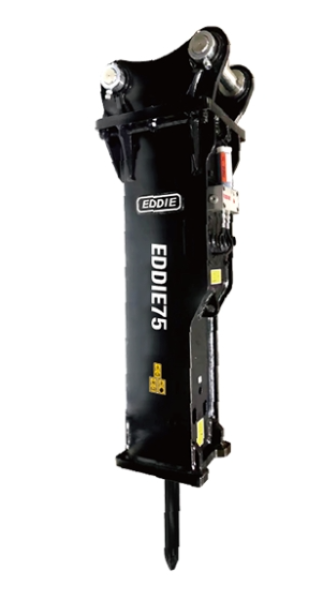

EDDIE75 Silenced Breaker (6 - 9 tons)
NEW
General Description
The EDDIE75 is a crusher designed for vehicles weighing between 6 and 9 tons. The EDDIE75 combines all the advantages of top-mounted crushers and features a fully enclosed design. The main drive unit and mounting bracket are fitted with shock-absorbing dampers, resulting in low noise levels and a low failure rate. It is frequently used for demolition work, tunnel construction and the crushing of slag.General technical specification
An Overview of all relevant technical data of the breaker EDDIE75 are listed in the following table.| Specifications | Unit | EDDIE40 EDT100 |
| Operating Pressure | kg/cm² psi bar |
120-150 1704-2130 118-147 |
| Oil Flow | l/min gal/min |
50-90 13-24 |
| Impact Frequency | bpm | 400-800 |
| Tool Diameter | mm inch |
75 2,95 |
| Suitable Carriers | ton | 6-9 |
| Valve Type | Inner Valve Type | |
| Accumulator | No |
The breaker has got a nominal weight of 411 kg and outer dimensions of 145*50*68cm.
Support by Fluitronics
The Fluitronics GmbH is part of the EDDIE group and your central contact partner for sales and service topics in Europe.Partner Network
Local sales and service are also provided through a network of partners. The advantage of this network is its proximity to customers, combined with technical expertise. This enables us to provide highly targeted advice and service.Please contact us, if you have interest in our local partners.
Accessories
Needed accessories for the excavator attachments can be found within our webshop. Spareparts also can be requested in our service.
