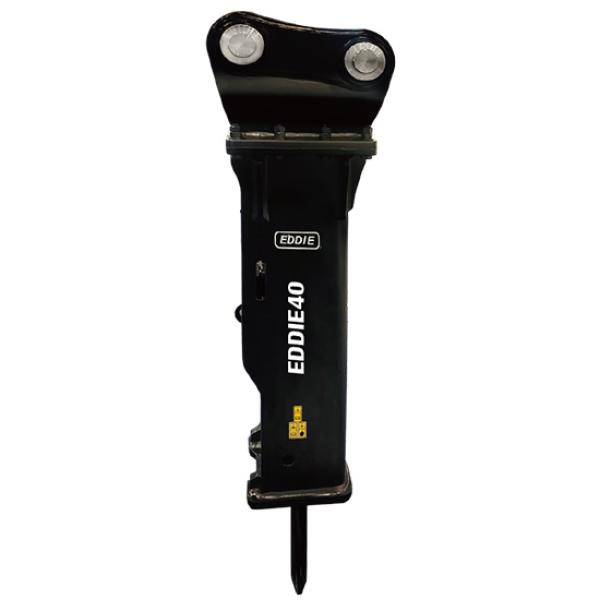

EDDIE40 Silenced Breaker
It incorporates all the advantages of top-mounted breakers and features a fully enclosed design. The main powercell and the bracket are assembled using shock-absorbing dampers and pads, resulting in low noise and failure rates. Often used for demolition, tunnel operations, and slag breaking.
General technical specification
An Overview of all relevant technical data of the breaker EDDIE40 are listed in the following table.| Specifications | Unit | EDDIE40 EDT100 |
| Operating Pressure | kg/cm² psi bar |
90-120 1280-1704 88-117 |
| Oil Flow | l/min gal/min |
15-25 4-7 |
| Impact Frequency | bpm | 800-1400 |
| Tool Diameter | mm inch |
40 1.57 |
| Suitable Carriers | ton | 0.8-2.5 |
| Valve Type | Inner Valve Type | |
| Accumulator | No |
Support by Fluitronics
The Fluitronics GmbH is part of the EDDIE group and your central contact partner for sales and service topics in Europe.Partner Network
Local sales and service are also provided through a network of partners. The advantage of this network is its proximity to customers, combined with technical expertise. This enables us to provide highly targeted advice and service.Please contact us, if you have interest in our local partners.
Accessories
Needed accessories for the excavator attachments can be found within our webshop. Spareparts also can be requested in our service.
