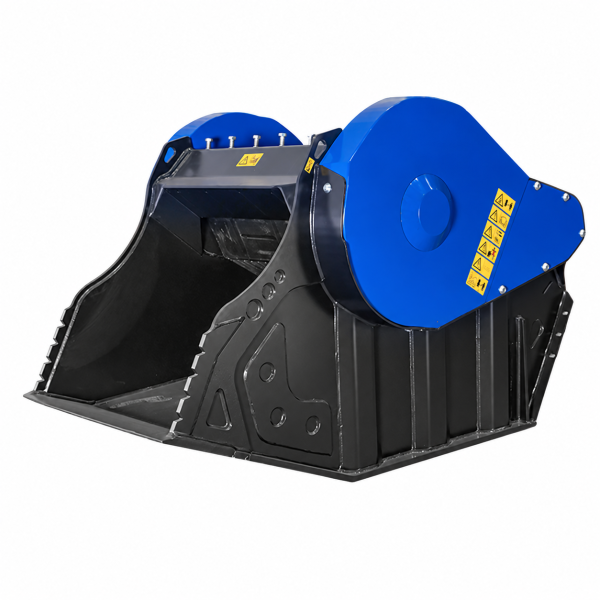

EDDIE Crushing Buckets – Mobile Crushing Directly with the Excavator

The EDDIE FBC20 and FBC30 Crushing Buckets are powerful hydraulic excavator attachments designed for crushing and processing rock, concrete and demolition materials. They allow material to be processed directly at the job site, supporting the recycling and reuse of concrete waste without the need for a separate stationary crusher.

The buckets can efficiently process mining rock, prefabricated concrete slabs and reinforced concrete structures. During crushing, concrete can be separated from reinforcing steel, making the processed material easier to sort, transport and recycle.

With two models for excavators from 20 to 35 tons, EDDIE offers suitable solutions for different carrier machines and material quantities. The FBC20 provides a capacity of 0.7 m³, while the larger FBC30 provides 0.85 m³. Both models operate at a working pressure of 230 bar.

Key Advantages at a Glance

• For excavators from 20 to 35 tons: Two models – FBC20 and FBC30 – for different carrier machines and applications.
• High crushing power: High-torque hydraulic motors and an efficient transmission system provide strong crushing performance.
• On-site recycling: Concrete and demolition material can be crushed and processed directly at the job site.
• Concrete and rebar separation: The crushing process supports efficient separation of concrete from reinforcing steel.
• Suitable for different materials: Designed for materials including rock, prefabricated slabs and reinforced concrete structures.
• Robust HARDOX construction: The main body is manufactured from wear-resistant HARDOX steel plates, combining high strength with relatively low weight.
• Powerful hydraulics: Both models operate at 230 bar, with recommended flow rates of 220 and 240 l/min.
• Large inlet opening: Depending on the model, inlet sizes are 850 × 430 mm or 910 × 540 mm.
• High-quality drive components: Imported motors and bearings provide durability and stable performance.
• Low-maintenance design: Robust construction and high-quality components support reliable professional operation.

Powerful Crushing with Excavator Hydraulics

EDDIE Crushing Buckets are powered by the excavator's hydraulic system. High-torque hydraulic motors drive the crushing mechanism and generate the force required to reduce rock, concrete and other suitable materials.

Both models operate at a working pressure of 230 bar. The FBC20 requires a recommended hydraulic flow rate of 220 l/min, while the larger FBC30 requires 240 l/min.

Because the crusher is mounted directly on the excavator, material can be picked up, crushed and processed at the same location. This can simplify demolition and recycling workflows and reduce the need to transport large unprocessed material.

HARDOX Construction for Demanding Applications

The main body of the EDDIE Crushing Bucket is manufactured from HARDOX steel plates. This high-strength and wear-resistant material provides excellent durability while helping keep attachment weight under control.

EDDIE also uses imported motors and bearings designed for durability, low maintenance requirements and stable operation. These features make the Crushing Buckets suitable for demanding professional demolition and recycling applications.

Versatile for Demolition and Recycling Applications

EDDIE Crushing Buckets are particularly suitable for:

• Concrete demolition: Crushing concrete and reinforced concrete components
• Rock processing: Crushing rock directly with the excavator
• Prefabricated concrete: Processing demolished precast slabs and components
• Material recycling: Processing mineral demolition waste for further use
• Rebar separation: Supporting separation of reinforcing steel from concrete
• On-site recycling: Processing concrete waste directly at the job site
• Volume reduction: Reducing large components for easier transport and further processing

EDDIE – Mobile Crushing Performance for Excavators from 20 to 35 Tons

From the FBC20 for excavators from 20 to 30 tons to the larger FBC30 for carrier machines from 25 to 35 tons, the EDDIE range covers professional demolition and recycling applications.

Capacities of up to 0.85 m³, inlet openings up to 910 × 540 mm, high-torque hydraulic motors and robust HARDOX construction make these Crushing Buckets a powerful solution for mobile material processing directly at the job site.

Find the right EDDIE Crushing Bucket for your excavator today.
