EDDIE CR Demolition Shears – High Crushing Power for Professional Concrete Demolition

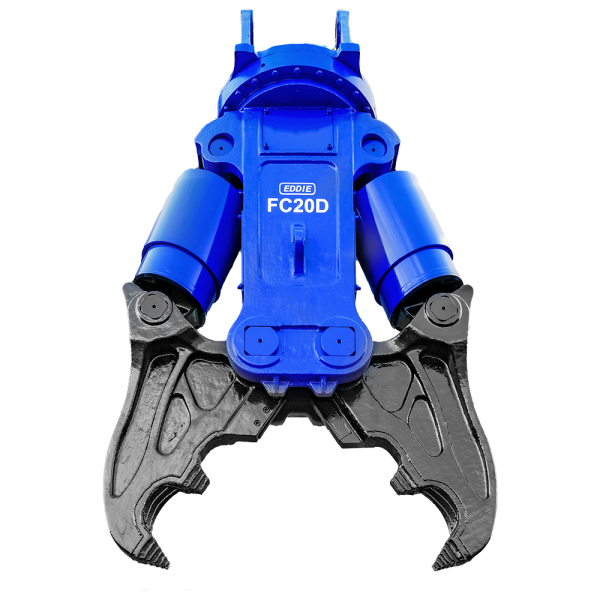

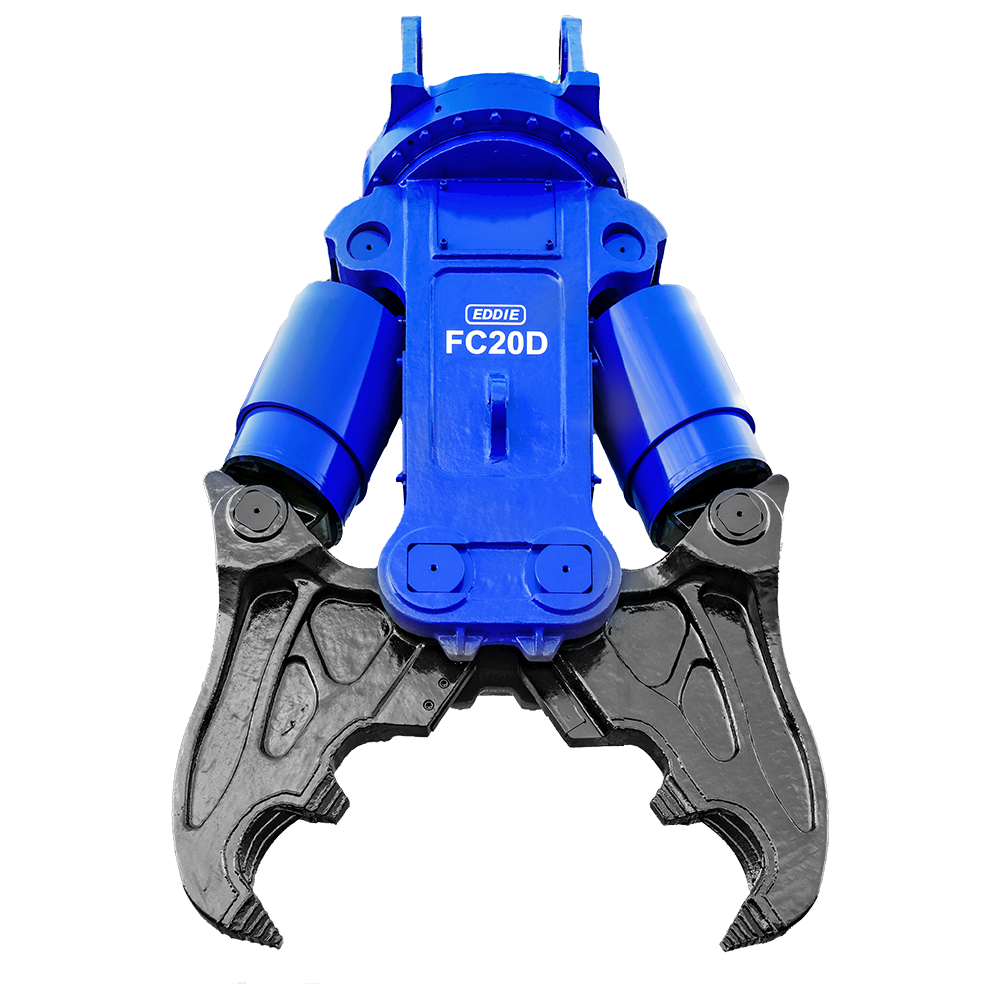

EDDIE CR Demolition Shears FC10D CR to FC20D CR are powerful hydraulic attachments designed for the primary demolition of concrete structures. Their specially developed CRusher-Typed Jaws combine large jaw openings with a multi-point crushing tooth structure, enabling efficient breaking and processing of massive concrete structures directly on the job site.

With three models for excavators from 11 to 35 tons, EDDIE offers suitable solutions for different carrier machines and demolition requirements. According to EDDIE, the overall cast construction increases strength and service life by 1.5 times compared with traditional welded plate structures. High crushing and shearing forces, powerful hydraulics, and mechanical or hydraulic 360° free rotation support efficient and flexible operation.

Key Advantages at a Glance

• For excavators from 11 to 35 tons: Three models – FC10D CR, FC15D CR, and FC20D CR – provide suitable solutions for different carrier machines.
• High shearing force: Depending on the model, shearing forces range from 1,460 to 4,154 kN.
• High crushing force: Crushing forces range from 380 to 1,078 kN.
• Large jaw opening: Maximum opening widths from 620 to 1,081 mm allow even large concrete structures to be securely gripped and crushed.
• Multi-point crushing teeth: The specialized tooth arrangement supports efficient breaking and decomposition of concrete.
• Designed for primary demolition: CR Demolition Shears are specifically designed for the initial demolition of concrete structures.
• Robust cast construction: According to EDDIE, the overall cast structure provides 1.5 times the strength and service life of traditional welded plate structures.
• Powerful hydraulics: Cylinder working pressures of up to 350 kg/cm² and oil flows of up to 240 l/min provide powerful working cycles.
• 360° rotation: The demolition shears are available with mechanical or hydraulic 360° free rotation.
• Flexible operation: The combination of a large opening, high force, and free rotation makes precise positioning around concrete structures easier.

Powerful Crushing with Excavator Hydraulics

EDDIE CR Demolition Shears are powered by the excavator's hydraulic system. Powerful hydraulic cylinders operate the jaws and generate the high shearing and crushing forces required to break and process massive concrete structures.

The FC10D CR operates at a cylinder working pressure of 200 to 300 kg/cm² with an oil flow requirement of 60 to 120 l/min. The FC15D CR and FC20D CR operate at cylinder working pressures of 300 to 350 kg/cm². Required oil flow is 140 to 240 l/min for the FC15D CR and 180 to 240 l/min for the FC20D CR.

For hydraulic rotation, the FC10D CR operates at a motor pressure of 60 to 90 kg/cm² with an oil flow of 20 to 30 l/min. The FC15D CR and FC20D CR operate at motor pressures of 120 to 160 kg/cm² with an oil flow of 30 to 50 l/min.

Mechanical or hydraulic 360° free rotation allows flexible positioning of the demolition shear and makes precise alignment with differently positioned concrete structures easier.

Special CR Jaws for Efficient Concrete Demolition

A key feature of EDDIE CR Demolition Shears is their specially designed CRusher-Typed Jaws. The combination of a large jaw opening and multiple crushing teeth distributes the crushing action across several contact points and supports efficient concrete decomposition.

The overall cast jaw construction also provides excellent durability. According to EDDIE, its strength and service life are 1.5 times greater than those of conventional welded plate structures.

Versatile for Concrete Demolition Applications

EDDIE CR Demolition Shears are particularly suitable for:

• Primary demolition: Powerful breaking and crushing of massive concrete structures
• Concrete demolition: Processing concrete walls, slabs, and other structural components
• Building demolition: Controlled dismantling of concrete structures directly with the excavator
• Material reduction: Reducing large concrete components for transport and further processing
• Large structural components: Maximum openings of up to 1,081 mm make it easier to handle massive structures
• Flexible demolition work: Mechanical or hydraulic 360° rotation supports different working positions

EDDIE – High Crushing Power, Large Jaw Opening, and the Right Fit for Your Excavator

From the compact FC10D CR for excavators from 11 to 16 tons, through the FC15D CR for 17 to 25 tons, to the powerful FC20D CR for carrier machines from 26 to 35 tons, the EDDIE CR range covers different professional concrete demolition applications.

Shearing forces of up to 4,154 kN, crushing forces of up to 1,078 kN, maximum openings of up to 1,081 mm, multi-point crushing teeth, and robust cast construction make the CR Demolition Shears a powerful solution for professional primary demolition.

Find the right EDDIE CR Demolition Shear for your excavator today.
