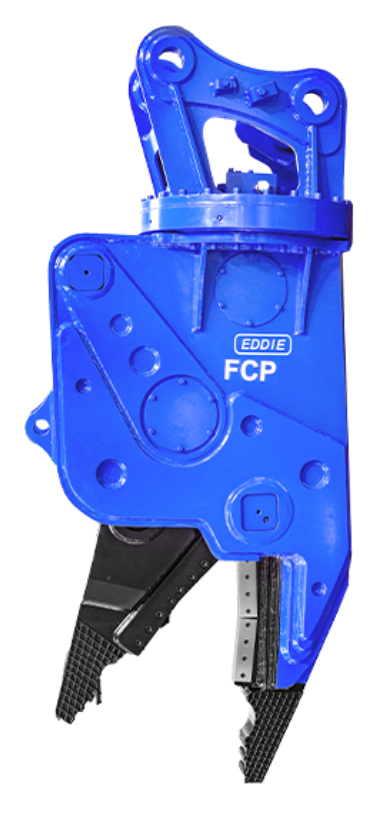

EDDIE Car Dismantlers – Precise Cutting and Gripping Power for Professional Dismantling

EDDIE Car Dismantlers FCP18L and FCP20 are powerful hydraulic attachments designed for the professional dismantling of vehicles and large hydraulic vessels. The combination of high cutting and shearing forces, secure gripping performance, and hydraulic 360° unrestricted rotation enables precise and efficient dismantling directly with the excavator.

With two models for excavators from 13 to 30 tons, EDDIE offers suitable solutions for different carrier machines and dismantling requirements. A high-flow acceleration valve, high-quality rotation components, and a special interlocking tooth design provide fast working cycles, secure gripping, and high stability.

Key Advantages at a Glance

• For excavators from 13 to 30 tons: The FCP18L and FCP20 cover different carrier sizes and dismantling applications.
• High cutting force: Depending on the model, cutting forces range from 480 to 945 kN.
• High shearing force: Shearing forces range from 120 to 390 kN.
• Large maximum opening: Maximum openings from 660 to 750 mm allow larger vehicle components and structures to be securely gripped.
• Hydraulic 360° unrestricted rotation: Full rotation enables flexible positioning and precise alignment of the dismantler.
• Secure gripping: The interlocking tooth design provides a secure grip on demolition and dismantling materials.
• Fast working cycles: The integrated high-flow acceleration valve enables intelligent energy recovery and improves opening and closing efficiency.
• Hydraulic system protection: Optimized hydraulic flow helps eliminate pressure spikes and contributes to longer hydraulic component service life.
• Robust rotation mechanism: Imported motors and high-quality slewing bearings improve the durability and overall stability of the rotation system.
• Designed for dismantling: The attachment is particularly suitable for automotive and large hydraulic vessel dismantling operations.

Powerful Cutting and Gripping with Excavator Hydraulics

EDDIE Car Dismantlers are powered by the excavator's hydraulic system. Powerful hydraulic cylinders operate the jaws and generate the forces required for gripping, cutting, and dismantling components.

The FCP18L operates at a cylinder working pressure of 240 to 300 kg/cm² with a required oil flow of 180 to 200 l/min. The larger FCP20 operates at 300 to 350 kg/cm² with an oil flow of 180 to 240 l/min.

For hydraulic rotation, both models operate at a motor pressure of 120 to 160 kg/cm² with an oil flow of 30 to 50 l/min. This allows both dismantlers to provide 360° unrestricted free rotation and precise positioning around the component being processed.

The integrated high-flow acceleration valve also supports fast opening and closing movements while helping eliminate pressure spikes in the hydraulic system.

Secure Gripping with Interlocking Tooth Design

A key feature of EDDIE Car Dismantlers is their interlocking tooth design. This provides a secure grip on the material during dismantling and supports controlled gripping, positioning, and separation of different components.

Combined with hydraulic 360° rotation, the dismantlers can be flexibly positioned at different working angles, making them particularly suitable for complex vehicle structures and large components.

Versatile for Dismantling Applications

EDDIE Car Dismantlers are particularly suitable for:

• Vehicle dismantling: Controlled dismantling and processing of end-of-life vehicles
• Automotive recycling: Separation and processing of different vehicle components
• Cutting operations: Powerful cutting of metal vehicle and structural components
• Gripping operations: Secure holding and positioning through the interlocking tooth design
• Large hydraulic vessels: Dismantling and processing of large hydraulic vessels
• Recycling applications: Preparing dismantled material for sorting and further processing

EDDIE – High Cutting Power, Secure Grip, and the Right Fit for Your Excavator

From the FCP18L for excavators from 13 to 25 tons to the more powerful FCP20 for carrier machines from 20 to 30 tons, the EDDIE range covers different professional dismantling applications.

Cutting forces of up to 945 kN, shearing forces of up to 390 kN, hydraulic 360° unrestricted rotation, and the interlocking tooth design make these Car Dismantlers a powerful solution for professional vehicle dismantling and recycling operations.

Find the right EDDIE Car Dismantler for your excavator today.
