General description

Flexible, modular, perfectly designed, professionally handling, "Made in GERMANY"!
Whatever you need to move, lift or transport, the compact hydraulic power pack in FLUITRONICS’ FLUIDPARTS Compact Series (FPC) provide the ideal solution for every task. The FPC series is characterised by its flexible modularity and range of options.
And even greater flexibility is available thanks to the CETOP add-on manifold blocks for the FPC power pack series. The manifold blocks are screwed onto the power packs and are available in various designs and for 1 to 3 CETOP valve options.
MAKE THE RIGHT MOVE!

Function

With the FPC compact hydraulic power pack type F a differencial cylinder can be operated. The hydraulic circuit diagram for Type F (see also configuration key below) is shown below.



The tank, pump size, motor type, pressure setting, directional valve and flow control valve are configurable items.

Details

The FPC-N160F21H08NAO000AA180-C01 compact unit is a unit featuring a 1.6 kW 12-volt DC motor, a displacement of 2.1 cm³/rev, a maximum flow rate of 10 l/min (unloaded) and a maximum pressure of 210 bar. The unit has an 8-litre plastic tank, rectangular in shape, for horizontal installation, without a mounting base, fitted with a 4/3-way seat valve in a Type F hydraulic circuit (flow control valve not included); the DBV set pressure is 180 bar. The power pack is equipped with a cable connection for a wired remote control; however, the remote control must be ordered separately.

Configuration key

Subsequently the configuration key of the FPC-power pack series is shown.



Each code position represents a specific attribute value, either on its own or in combination with other positions.

Dimensions

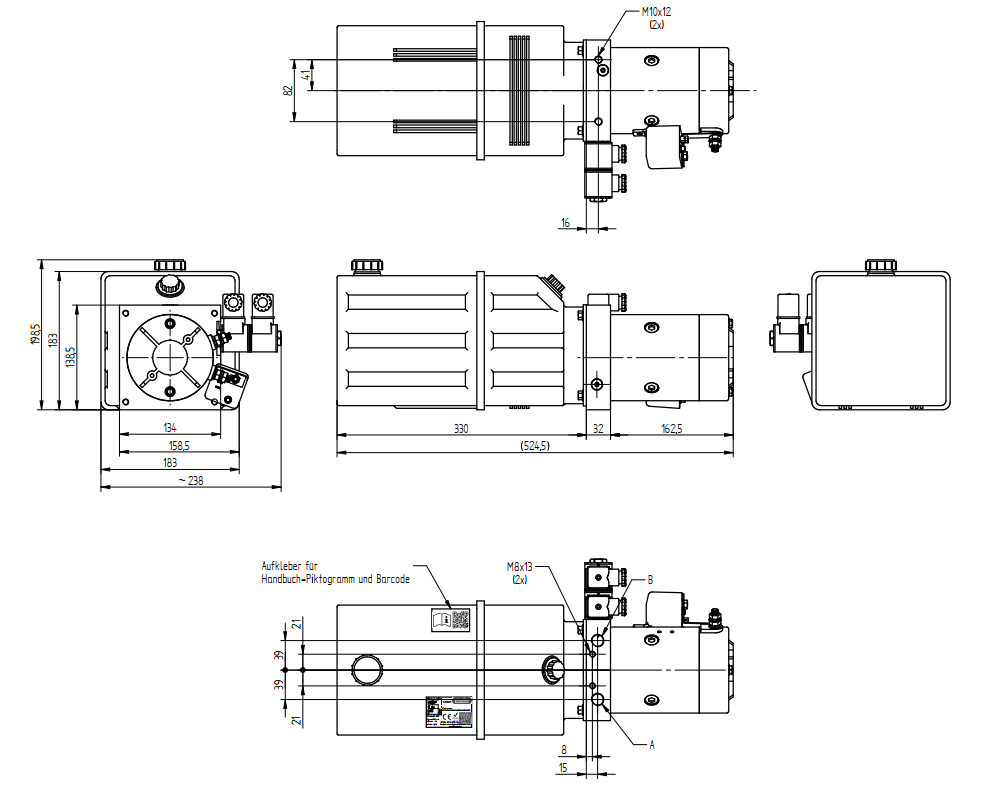

The dimensions of the hydraulic power pack FPC are shown below.

---

FLUITRONICS is a specialist in the development and manufacture of customer-specific series solutions in the field of drive technology and control. If you cannot find any suitable products in our database, please contact us or visit our homepage (www.fluitronics.com). We would be happy to show you what the path to your individual solution can look like.
