General Description
The APV control valve series is a highly modular sectional valve design, available in sizes APV10, APV16, APV22 and APV32 or flow rates between 80 l/min and 1000 l/min. Optionally, the APV can also be configured in subplate design.
For the APV10 size, the spool section is the central base. It consists of I) a spool control section, II) basic or customized porting blocks, and III) spring and end caps with different actuation modes. In the APV10, a maximum of 14 or 15 parallel sections are possible. To complete the valve, an input plate is also required in addition to an end plate.

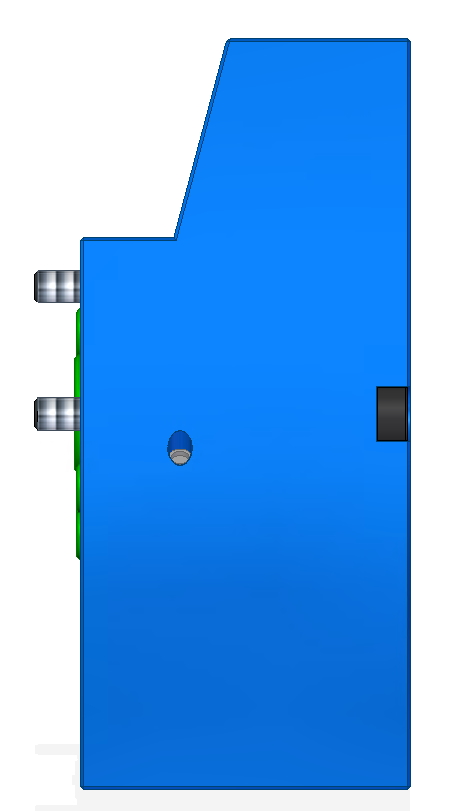

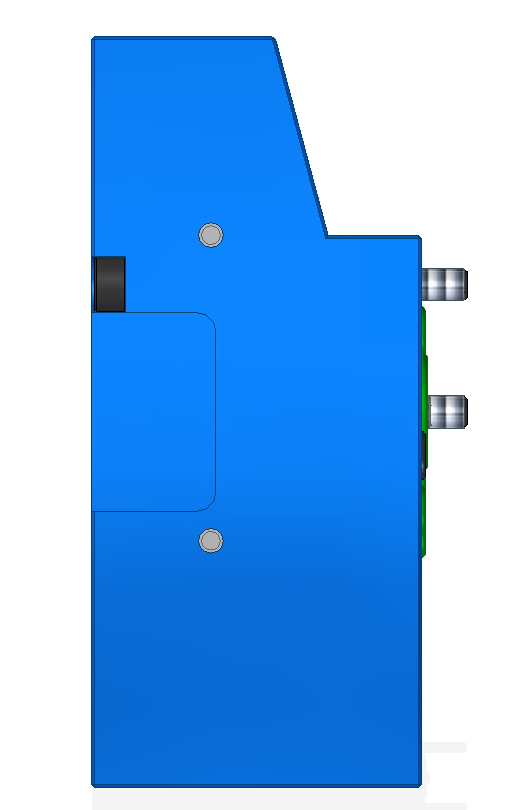

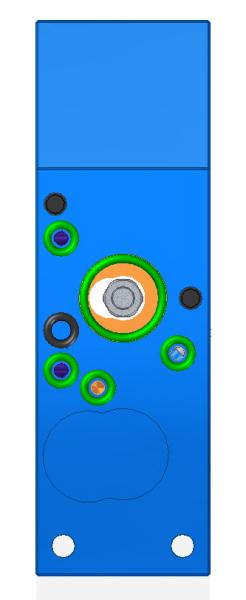

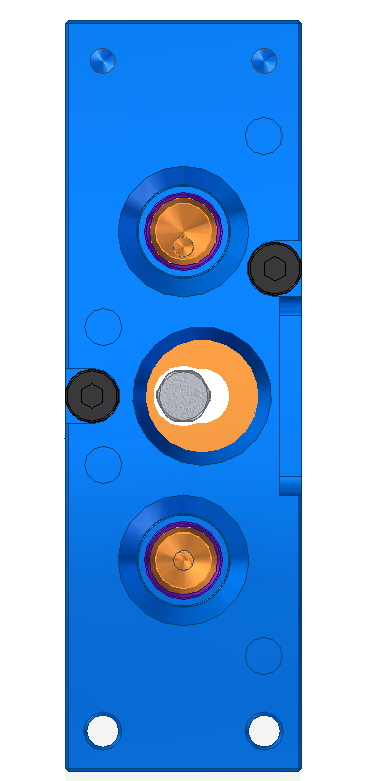

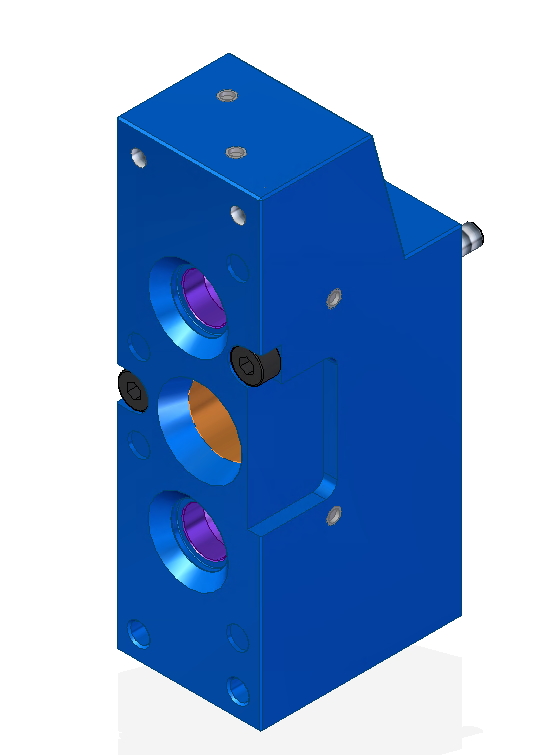

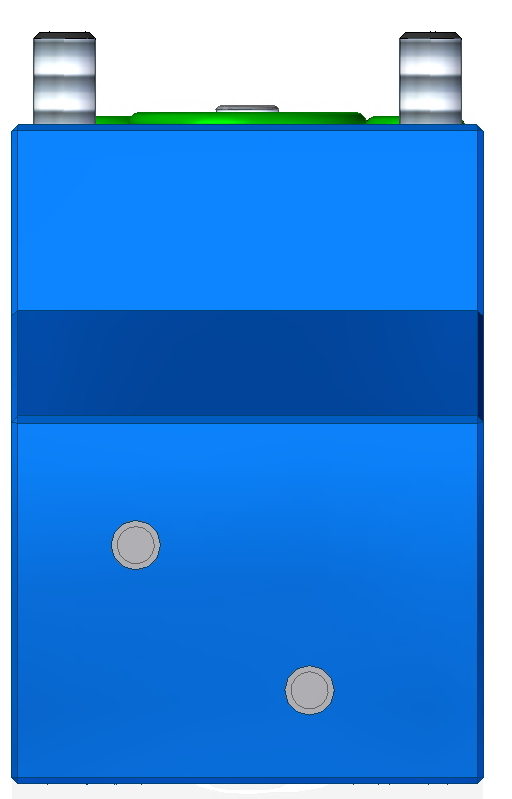

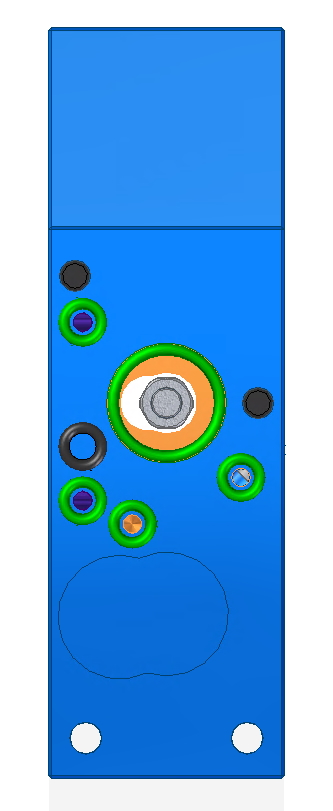

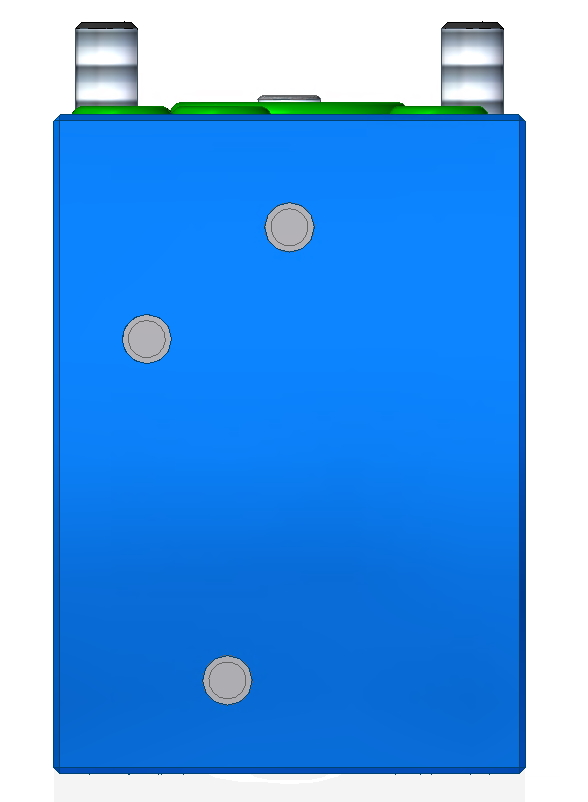

The AP-1020-305 is an adapter block for electrical operation of the valve section in combination with the AP-1020-356J CAN bus controller.
Conventional directional control valves control the start, stop, and movement directions of hydraulic motors and cylinders. However, the speed of these users depends on the load pressure. If this load pressure varies then the speed is hardly controllable.
The AMCA proportional directional valves of the APV series are load compensated and achieve ideal control of force, speed, acceleration and deceleration, regardless of load and increased requirements.
All components are available in standard uncoated and in seawater resistant Protalloy coating.
Example Configuration
Below is a complete APV10 sample configuration consisting of several spool sections as well as different connection blocks, end caps with pilot valves, spring end caps as well as the input and end plate. In general, the configuration can be completely customized. Details on the configuration of the APV10 connection blocks can be found in the configuration key shown below. Further assistance in assembling complete custom section valves is available from APV build partners worldwide as well as our technical support.
Function
This end cap is the basic block for the electrical operation of an APV10 slide valve section. The maximum pressure is 350 bar, the maximum flow rate per section is 80 l/min. A suitable pilot control valve needs to be configured. The adapter block is uncoated.
Configuration Key
Subsequently the general configuration key for APV10 spool section, comprising different actuation modes, is shown.
Example of a configuration comprising an various end caps
Following an example for a complete configuration is shown, also comprising various end caps.
Hydraulische Daten
Maximaler Volumenstrom:Port P or P1 100 L/min.
Port P + P1 160 L/min.
Port A / B 80 L/min.
Maximaler Druck:
Port P / A / B 350 Bar
Port T 35 Bar
Druck Einstellbereich: 14-350 Bar
Druckverlust über die 2-Wege-Druckwaage (A,B): 3...12 Bar
Interner Vorsteuerdruck: 28 Bar
Vorsteuerdruck für elektrische und hydraulische Betätigung: 6-20 Bar
Schieberhub: 7,5 mm
Schieberüberdeckung (Todband): 1 mm (13% des Schieberhubs)
Hysterese: 4%
Fluid-Anforderung
Fluid: Mineralöl gemäß DIN 51524/51525Fluid-Betriebstemperatur: -30°C…+80°C
Viskositätsbereich: 10…500cSt, optimal 30cSt
Reinheitsgrad (max.) gem.NAS 1638: Klasse 8 oder
Reinheitsgrad (max.) gem.ISO 4406: 18/16/13
Anschlussport Größen
Hydr. Anschlüsse:Port P, T G ¾” BSP
Port A,B G ½” BSP
Port Ls G ¼” BSP
Port L G 1/8” BSP
Port YA,YB G 1/8” BSP
Elektrische Daten
Elektrische Anschlüsse: AMP Junior Power Timer / DeutschNominelle Betriebsspannung: 12 VDC oder 24 VDC
Nomineller Strom: 12 VDC (1500 mA) / 24 VDC (750 mA)
Spulen-Wicklungswiderstand: 12 VDC (4,72 ± 5% Ω) / 24 VDC (20,8 ± 5% Ω)
Empfohlene Dither Frequenz: 100 Hz
Schutzart: IP 65
Betriebsdauer: 100%
Maße und Dimensionen
