General Description
The APV control valve series is a highly modular sectional valve design, available in sizes APV10, APV16, APV22 and APV32 or flow rates between 80 l/min and 1000 l/min. Optionally, the APV can also be configured in subplate design. For the size APV10 the spool section is the central basis and needs to be completed with inlet and end plates. The section comprises of the control spool section, including the load compensator, the main control spool, standard or customer specific connection block, as well as spring caps and end caps that define the control mode. For the APV10 a maximum of 15 parallel sections are possible if the small end plate is used. In case of the wide end plate 14 parallel sections are possible.The controller (AP-1020-356J) is used for proportional control of the valve section via CAN bus.
Standard directional valves control start, stop and direction of motion of hydraulic motors and cylinders. However, the speed of these consumers depend on the load pressure. If the load pressure varies the speed can hardly be controlled. The AMCA proportional, directional valves of the APV series are load compensated and thus provide an ideal control of force, speed, acceleration and deceleration, independant of the load and further boundary conditions. The valves can be operated with LS pumps as well as with fixed displacement pumps.
All components are available uncoated in the standard version and in seawater-resistant Protalloy coating.
Example Configuration
Below is a complete APV10 sample configuration consisting of several spool sections as well as different connection blocks, end caps with pilot valves, spring end caps as well as the input and end plate. In general, the configuration can be completely customized. Details on the configuration of the APV10 connection blocks can be found in the configuration key shown below. Further assistance in assembling complete custom section valves is available from APV build partners worldwide as well as our technical support.Function
The operation principle of the APV10 proportional section subsequently is described. The spool section itself consists of the 2-way compensator with delta-p adjustment. Thus the flow can be adjusted without stroke limitation. Each control section has got a emergency handling mechanism. A lever can be configured and mounted. In order to use alternative operation methods different end caps have to be used. Below spool sections with the varying, available operation methods are displayed. The high pressure line is shown in red, the tank return line is displayed in green. The load compensator can be seen in the lower part of the cross sectional view. The control spool can be seen in the upper part.
Manual Control
Hydraulic Control
Electrical Control
Electrical Control (CAN Bus)
The spring cap and the end cap as well as the spool need to be configured seperately to complete the section.
Spool Type
Two basic control spool types are available,- the A spool, for which all parts are closed in neutral position and
- the C-spool, for which in neutrol position P is closed and A/B are connected to the T line, with 20% nominal cross section.
For these basic spool pistons 3 flow ranges are available, shown below
Details

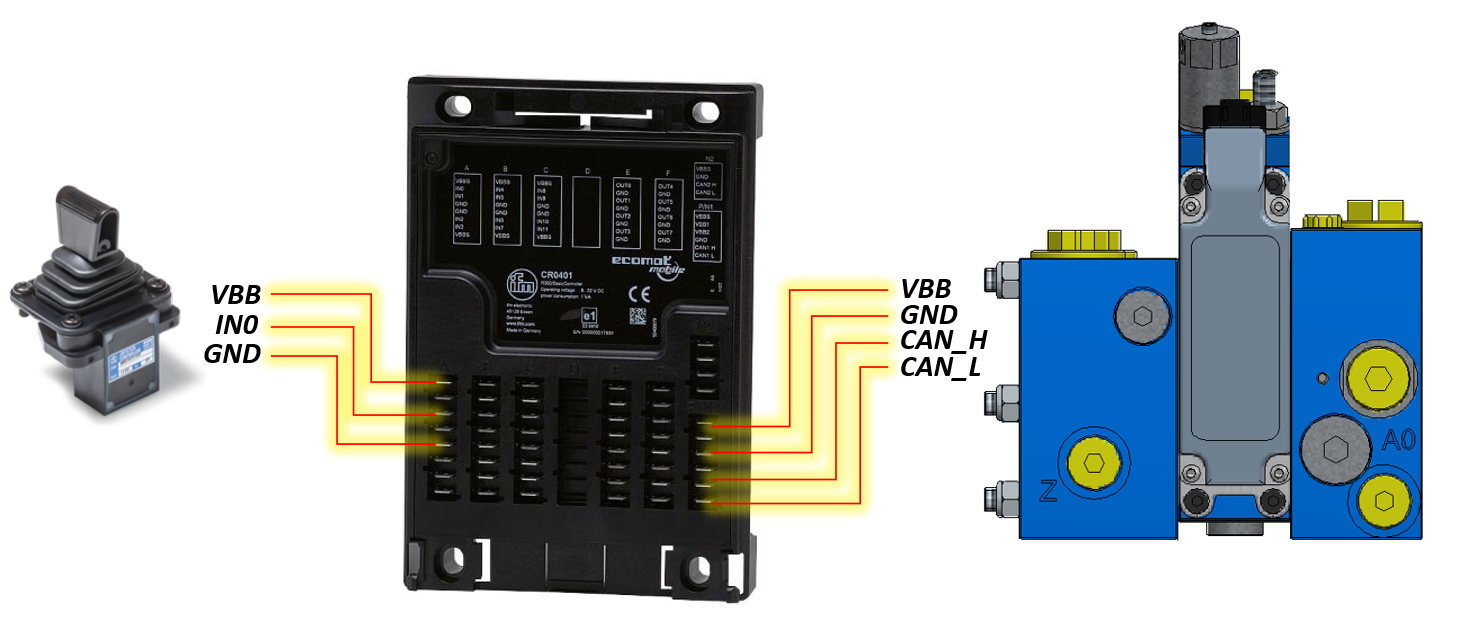

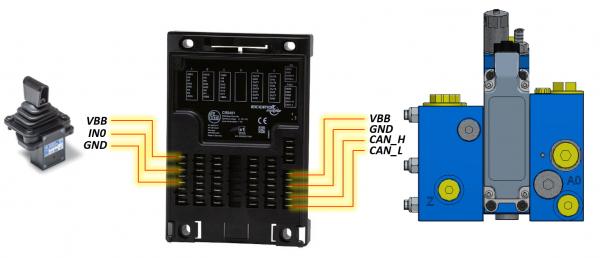

Demo kit for proportional APV10 CAN bus control, includes 2 APV10 sections (AP-1020-300F) with type C spool (AP-1020-102), spring cap, CAN bus module (AP-1020-356J), terminal block (AP-1020-305) and terminal block (AP-1030-300), input plate, end plate, tie rod, demo mobile control with pre-configured sample software, 2 joysticks, cable harnish, instructions for quick installation.enables the first steps to get started with CAN bus technology.Configuration Key
Subsequently the configuration key of the APV10 is shown.
Configuration Key Part 1
Configuration Key Part 2
Example of a configuration comprising a spool section
Following an example for a complete configuration is shown, also comprising several spool sections.
Hydraulic Data
Max. flow:Port P or P1 100 L/min.
Port P + P1 160 L/min.
Port A / B 80 L/min.
Max. pressure:
Port P / A / B 350 bar
Port T 35 bar
Pressure setting range: 14-350 bar
Pressure drop over 2-way compensator (A,B): 3...12 bar
Internal pilot pressure supply: 28 bar
Pilot pressure for electric and hydraulic control: 6-20 bar
Spool stroke: 7,5 mm
Spool overlap (dead band): 1 mm (13% of spool stroke)
Hysteresis: 4%
Fluid Requirement
Fluid: Mineral oil according to DIN 51524/51525Fluid operating temperature range: -30°C…+80°C
Viscosity range: 10…500cSt, optimal 30cSt
Contamination level max. According to NAS 1638: class 8 or
Contamination level max. According to ISO 4406: 18/16/13
Port Sizes
Port connections:Port P, T G ¾” BSP
Port A,B G ½” BSP
Port Ls G ¼” BSP
Port L G 1/8” BSP
Port YA,YB G 1/8” BSP
Electrical Data
Electric connection: AMP Junior Power Timer / DeutschNominal voltage: 12 VDC and 24 VDC
Nominal current: 12 VDC (1500 mA) / 24 VDC (750 mA)
Coil resistance: 12 VDC (4,72 ± 5% Ω) / 24 VDC (20,8 ± 5% Ω)
Recommended dither frequency: 100 Hz
Type of protection: IP 65
Duty cycle: 100%
Dimensions
Support by Fluitronics
FLUITRONICS designes and produces customer specific solutions as well as components in the field of drive technology.For any technical question regarding sectional valve series of FLUITRONICS, e.g. the APV series or the M-Series, pls. contact: TecSupport@fluitronics.com
International partner network
The mobile valve series is distributed globally. In some countries FLUITRONICS cooperates with local partners and their network, who do have the required competencies, market access and who provide solutions on basis of the FLUITRONICS components. Attached pls. find an overview about the local partner network:
Australia:
K-One Fluid Power - Perth
Unit 1, 1 Dampier Road
Welshpool WA Australia 6106
Contact: person: David Hepburn
Phone: (+61 8) 9358 2300
Fax: (+61 8) 9358 2322
Email: orders@k-1fluidpower.com
K-One Fluid Power - Sydney
Unit 13, 43 Sterling Road
Minchinbury NSW Australia 2770
Contact: person: Morgan Skelton
Phone: (+61 2) 9674 4900
Fax: (+61 2) 9674 4985
Email: orders@k-1fluidpower.com
Belgium:
REM-B
Rouwebergskens 5
2340 Beerse
Contact person: Stef Boeckx
Telephone: 0032 14 622 860
Mail: info@remb.be
Website: www.remb.be
Canada:
P.S.I. Fluid Power
Edmonton Office
4210 51 Ave NW
Edmonton, Alberta,
Canada
T6B 3B5
Phone: (780) 452-1594
Fax: (780) 452-0491
Calgary Office
4020-11A Street SE
Calgary, Alberta,
Canada
T2G 3H3
Phone: (403) 253-2236
Fax: (403) 258-3165
Red Deer Office
7597 Edgar Industrial Drive
Red Deer, Alberta, Canada
T4P 3R2
Phone: (403) 358-4212
Fax: (403) 358-7614
Vancouver Office
13771 Mayfield Place
Richmond, British Columbia, Canada
V6V 2G9
Phone: (604) 278-4481
Fax: (604) 278-7693
Contact person: John Zanata
John Zanata Email: jzanatta@psifp.com
Chile:
Electrohidraulica
Espana 7963
La Cisterna, Santiago
Contact person:
Luis Mardones
Phone: +56 2 5582128
Email: luismardones@electrohidraulica.cl
Website: www.electrohidraulica.cl
Estonia:
DIDO Vennad OÜ
Ringtee 27
50105 Tartu
Estonia
Telephone: +376 5664 3687
Mail: info@didohydraulika.ee
Website: www.didohydraulika.ee
Germany:
Fluitronics GmbH
Europark Fichtenhain B2
47807 Krefeld Germany
Telephone: +49 (0)2151 4589 0
Mail: info@fluitronics.com
Website: www.fluitronics.com
Suffel Foerdertechnik GmbH & Co. KG
Wailandtstrasse 11
63741 Aschaffenburg
Phone: +49 6021 8645-29
Mail: hydraulik-neugeschaeft@suffel.com
Israel:
Shir Techno-Trade LTD.
34 Hahofer St., Industrial Area,
Holon,
TEL: 972-3-5501440
FAX: 972-3-5501421
Email: purchase@techno-trade.biz
Website: http://www.techno-trade.biz
The Netherlands:
DÉGRA Winches and Hydraulics.
James Wattstraat 2
3281 NK Numansdorp
Telephone: 0031 186-652189
Email: Info@degra.com
Website: www.degra.com
Norway:
Kolberg Caspary Lautom AS
Røykenveien 70
1386 Asker
Contact person: Olaf Fled & Tore Olsen
Phone: +47 46 54 71 61
Email: hydraulikk@kcl.no
Website: www.kcl.no
Russia:
Adamko Controls Ltd.
Saint Petersburg Office
Sverdlovsk nab. 44, BC “ZIMA”, of. 321
Saint Petersburg, Russia
Phone: 007 812 3132207
Email: info@adamko-controls.ru
Website: www.adamko-controls.ru
Scotland:
ITC Hydraulic Services Ltd
The Garage
St Katherines, Inverurie
Aberdeenshire AB51 8SN
Telephone: +44 (0)1651 891626
Mail: ian@itc-hydraulics.co.uk
Website: www.itc-hydraulics.co.uk
Spain:
Hine Industrial
Pol. Ind. Karobi, 6005
20212 Olaberria
Apdo. 60 – Beasain
Contact person: Jose Carlos Fernández
Telephone: 0034 986 473 912
Mail: galicia@hine.es
Website: www.hine.es
Turkey:
Hidroport Mühendislik
OOstim OSB Mah.
100. Yıl Bulvarı No: 64
Yenimahalle / ANKARA
Telephone: +90 312 385 10 02
Fax: +90 312 385 20 03
Email: info@hidroport.com
Website: www.hidroport.com
United Kingdom:
Hercules Hydraulics Ltd
Unit 33 Torbay Business Park
Woodview Road
Paignton
Devon TQ4 7HP
Contact person: Ryan Langley
Telephone: 0044 1803 666623
Mail: ryan@herculeshydraulics.co.uk
Website: www.herculeshydraulics.co.uk
USA:
Spencer Fluid Power
Kent, Washington
19308 68th Ave. S.
Kent, WA 98032
Phone: 253-796-1100
Branch manager: Mike Anderson
Spencer Fluid Power
Portland, Oregon
2230 NE Columbia Blvd
Portland, OR 97211
Phone: 503-249-2835
Toll Free: 800-257-1002
Branch Manager: Ozzie Park
Spencer Fluid Power
Modesto, California
1064 Woodland Ave. Suite T
Modesto, CA 95351
Phone: 209-549-0800
Toll Free: 800-549-2730
Branch Manager: Doug Otteraaen
Spencer Fluid Power
Salt Lake City, Utah
2206 S 2000 West
Salt Lake City, UT 84119
Phone: 801-972-8316
Toll Free: 800-975-7278
Branch Manager: Chad Gibson
Spencer Fluid Power
Fontana, California
11897 Cabernet Dr., Ste. C
Fontana, CA 92337
Phone: 951-360-5808
Toll Free: 800-860-6611
Branch Manager: Doug Otteraaen
Spencer Fluid Power
Boise, Idaho
7417 W. Mossy Cup St.
Boise, ID 83709
Phone: 208-362-5655
Toll Free: 800-784-1394
Branch Manager: Clint Richins
Spencer Fluid Power
Yakima, Washington
1930 Rudkin Rd.
Yakima, WA 98903
Phone: 509-248-0580
Toll Free: 800-572-8351
Branch Manager: Ozzie Park
Spencer Fluid Power
Billings, Montana
410 Bernard St.
Billings, MT 59101
Phone: 406-248-7431
Toll Free: 800-877-1090
Branch Manager: Mitch King
Spencer Fluid Power
Gillette, Wyoming
3201 LeTourneau Dr.
Gillette, WY 82718
Phone: 307-682-5858
Toll Free: 800-788-5858
Branch Manager: Shannon Ewing
Carolina Fluid Components
Charlotte, North Carolina
9309 Stockport Place
Charlotte NC 28273
Phone: (704) 588-6101-2880
Toll Free: (704) 887-0880
Project Manager: Adam C. Rushing
APV-10 Program
In addition to size APV10, other sizes APV16, APV22 and APV32 are available. In order to be able to combine the different sizes with each other, suitable inlet sections are available.
Sealing kits
Sealing kits are available for the APV series. Please ask us about them: TecSupport@fluitronics.com.
Other accessories
A suitable amplifier card PROam21 (ZC-2320-501) is available as a further accessory.
